Performance and control. Always on top.
Esautomotion motors are designed to integrate perfectly with VIS-600 and 800 CNCs
and EBS and EBSH series drives.
Always compact in size for easier installation, they always offer the ideal torque, inertia and power
for each type of application.
The wide range of Esautomotion motors provides both classic solutions, such as the E and EH series,
and exceptionally innovative ones such as the ED series motors with integrated drives.
E series
Motors
High rotation speed
and axis movement precision
The E series brushless servomotors are synchronous AC motors,
adopting latest generation manufactoring and magnets solutions.
They are characterized by excellent performance
and low ripple and can can mount an incremental or absolute encoder.
They are also characterized by a high torque / volume ratio
and provide excellent dynamic performance.
Main features:
- Rare earth magnets for high temperatures
- 8-pole construction
- Sinusoidal FCEM
- Thermal protection integrated with PTC
- Connectors output
- Compact size, high protection, smooth casing
- High speed
- High inertia and high efficiency
EH series
Motors
Maximum power
ready for delivery.

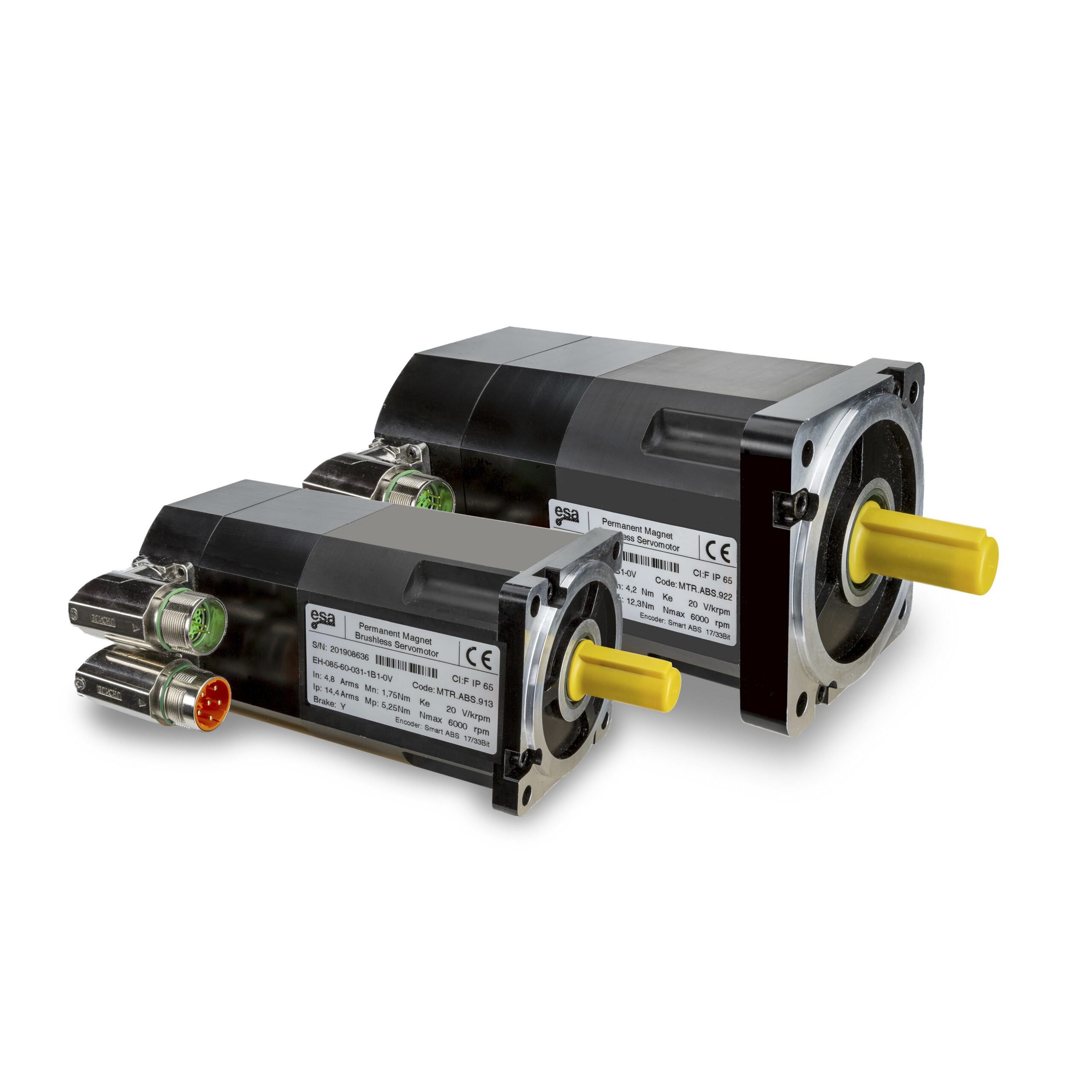

The brushless motors of the new EH series
have characteristics and performances very similar to those
of the E series but are assembled externally in large batches
on Esautomotion specifications to always be available in stock.
Its are the ideal solution when a standard product can meet
the customer’s needs and the speed of delivery is a determining factor.
Main features:
- Thermal insulation: Class F (T Max = 140 ° C → Ta = 40 ° C + ΔT = 100 ° C) obtained
using components in class F and H - Construction form B5
- Degree of protection: IP65 – Natural cooling
- Thermal protection: Not available
- Shaft: standard with key
- Connections:
- Feedback connectors: connections with transducer and PTC: M23 – 17 poles
- Power connector: motor and brake connections: M23 6 poles.
- Transducer: Absolute Smart ABS Tamagawa 17 / 33Bit
- 24Vcc brake (optional)
with integrated drive
ED Series Motors
Saving space
without sacrificing performance
and reliability.
It’s truly possible with Esautomotion.
Thanks to constant technological research,
Esautomotion has managed to incorporate
the drive into the motor, freeing up about 70%
of the space normally occupied in the electrical cabinet.
This comes also with drastic reduction
in wiring and components, significantly reducing costs.
Main features:
- Rare earth magnets for high temperatures
- 8-pole construction
- Sinusoidal FCEM
- Thermal protection integrated with PTC
- Connector output
- High protection, smooth casing
- High speed
- High inertia and high efficiency
- Drive integrated directly into DC
- Power supply module capable of managing multiple ED motors
- Total supply of 10 continuous Arms and 30 Peak Arms (guaranteed for 5 sec)
- Management of the braking resistor through the power supply module. The module integrates the IGBT and a resistance of 120W and external power up to 1500W
- Continuous power stabilization capacity and related soft charge circuit
- EMI filter for compliance with EMC regulations (directives 2004/108 / EC and 2006/95 / EC)
- CanOpen std DS301 protocol as communication interface
- Circuitry for integrated electromechanical brake management
- Protections against overcurrent, over-temperature, power module, printed and motor conditions
- Power supply boards with energy saving logic (max absorption on 24VDC – 200 mA)
- Standard protection IP65
- Its can manage an incremental or absolute encoder
